銆怭roduct Model銆? GM5F20BH20A
銆怋rand銆? SHARP
銆怭roduct BIN銆?
Forward current (IF): 175 mA
[Forward Pulse] Pulse Forward Curren"t1 銆?IFp)锛歮A
Reverse current (IR): 10uA
Reverse Voltage (VR): 5V
Power Dissipation (PD): 1222mW
Operating temperature Operatin Tgemperature (Topr): - 30 ~ +85 鈩?br />
Storage temperature (Tstg): - 40 ~ +100 鈩?br />
Soldering Temperature Soldering Temperature (Tsld): reflow 260 鈩?for 10 seconds / manual
Welding 350 鈩?for 3 seconds
[Chip temperature Junctio Tnemperature] (Tj): 110 掳 C
Forward voltage (VF): 6.11-6.91V (160mA)
[Brightness] (Iv): 73.7-97.7LM (160mA)
[Band] (nm): -nm (mA)
[Color area]: white x = 0.251, y = 0.210 (160mA)
銆怌olor temperature銆?(CCT):
銆怓eatures銆? excellent heat dissipation

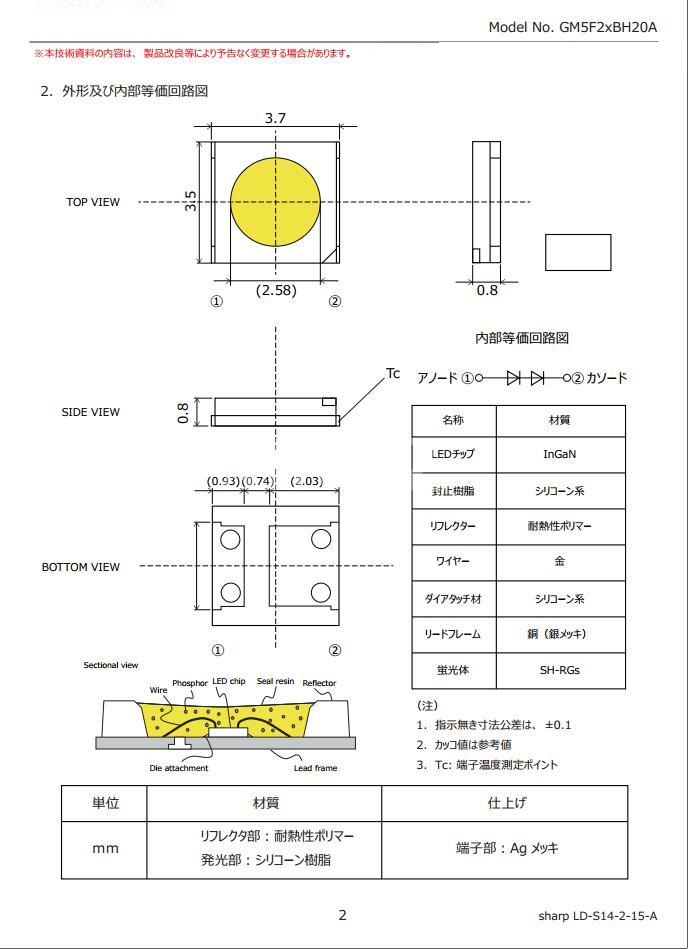

銆怱ize銆? 3.7 脳 3.5 脳 0.8 mm (L 脳 W 脳 H), light-emitting surface d = 2.58mm
